Setting cell values

Let us create a simple macro function that puts the current time in cell A1 of the current worksheet.

Create the function

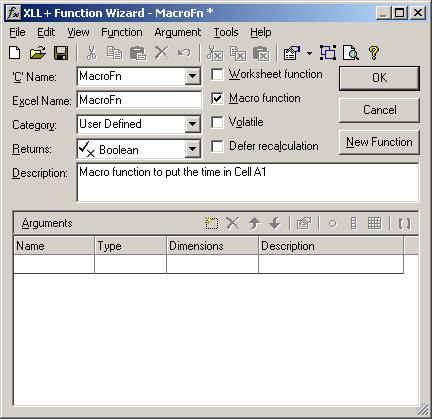

Create a new function in the XLL+ ClassWizard, as shown below. The function has no arguments.

Notice that the Macro function check-box is checked and the Worksheet function check-box is unchecked.

Add the code

Amend the generated code as shown below.

//{{XLP_SRC(MacroFn)
    // NOTE - the FunctionWizard will add and remove mapping code here.
    //    DO NOT EDIT what you see in these blocks of generated code!
IMPLEMENT_XLLFN2(MacroFn, "A", "MacroFn", "", "User Defined",
    "Macro function to put the time in Cell A1", "", "", 2)

extern "C" __declspec( dllexport )
BOOL MacroFn()
{
//}}XLP_SRC

    // Get the time now
    double dNow;
    XlNow(&dNow);

    // Make a reference to cell A1
    CXlOper xloRef;
    xloRef.MakeRef("A1");

    // Set the value of cell A1
    xloRef.SetValue(CXlOper(dNow));

    return 0;
}

Build the project and open the add-in in Excel.

Running the macro

We can invoke the macro in a number of ways. Let us examine a few of them.

1. Directly

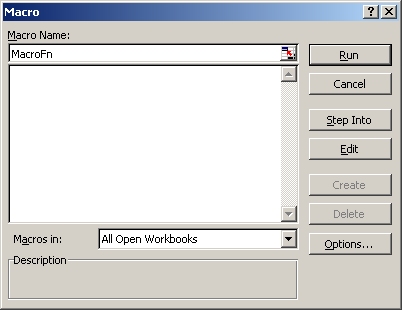

   Invoke the Run Macro dialog box, either by clicking the Tools - Macro - Macros... menu option or with Alt+F8.



   Type in the macro name "MacroFn", as shown below, and click Run.

2. With a menu or toolbar

   You can create menus and toolbars that will appear when your add-in is opened and be destroyed when the add-in is closed. Each menu item and toolbar tool can be attached to a named macro function.

   Menu and toolbars are discussed in detail in Menus and Toolbars.

3. Attached to a button in a workbook

   Using the Forms toolbar, create a new button.

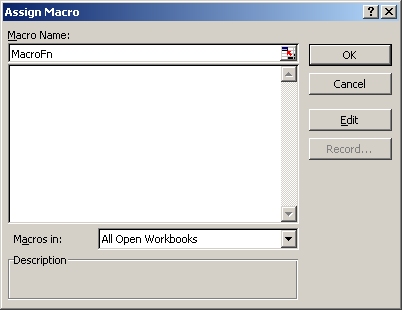

   In the Assign Macro dialog, type in "MacroFn", and click OK.



4. With code

   You can also run a macro from VBA code, using the Application.Run() method. For example, the following lines invoke macros with and without arguments:

   Call Application.Run("MacroFn")
   Call Application.Run("MacroFn2", 12.6, "cheese")
