Let us create a simple macro function that puts the current time in cell A1 of the current worksheet.

Create the function

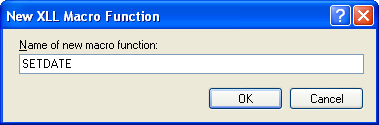

Create a macro function in one step using the New Macro command, which is located on the toolbar of the XLL Add-ins window.

Name:

SETDATE

Add the code

Amend the generated code as shown below.

CXlOper* SETDATE_Impl(CXlOper& xloResult)
{
    // End of generated code
//}}XLP_SRC

    // Make a reference to cell A1
    CXlOper xloRef;
    xloRef.MakeRef("A1");

    // Set the value of cell A1
    xloRef.SetValue(CXlDate::Now());

    return xloResult.Ret();
}

Build the project and open the add-in in Excel.

Running the macro

We can invoke the macro in a number of ways. Let us examine a few of them.

1. Directly

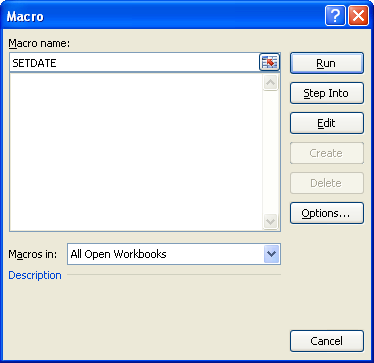

   Invoke the Run Macro dialog box, either by clicking the Tools - Macro - Macros... menu option or with Alt+F8.



   Type in the macro name "SETDATE", as shown below, and click Run.

2. With a menu or toolbar

   You can create menus and toolbars that will appear when your add-in is opened and be destroyed when the add-in is closed. Each menu item and toolbar tool can be attached to a named macro function.

   Menu and toolbars are discussed in detail in Menus and Toolbars.

3. Attached to a button in a workbook

   Using the Forms toolbar, create a new button.

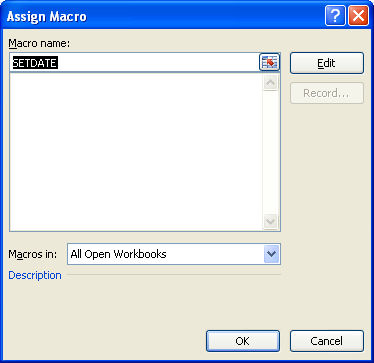

   In the Assign Macro dialog, type in "SETDATE", and click OK.



4. With code

   You can also run a macro from VBA code, using the Application.Run() method. For example, the following lines invoke macros with and without arguments:

   CopyVBA

   Call Application.Run("SETDATE")
   Call Application.Run("AnotherMacroFunction", 12.6, "cheese")

Next: Find/Replace >>
