XLL+ Class Library (6.3)

Flat layout

Matrix argument laid out as a continous array of values

To demonstrate the use of a different matrix layout, we are going to add a function which returns the location of the maximum value within a two-dimensional array. Add the simple function shown below to the end of Tutorial1.cpp:

CopyC++
#include <algorithm>

// Find location of maximum value in adValues
// adValues must be a continuous array, with columns held together
int FindMax(int cCols, int cRows, const double *adValues, int* pnMaxCol,
            int* pnMaxRow)
{
    const double* pdEnd = adValues + (cRows * cCols);
    // Use STL algorithm to find offset of max value
    const double* pdMax = std::max_element(adValues, pdEnd);
    if (pdMax == pdEnd)
        return 0;
    // Translate offset to coords
    *pnMaxRow = (pdMax - adValues) % cRows;
    *pnMaxCol = (pdMax - adValues) / cRows;
    return 1;
}

As you can see, this function takes advantage of the STL max_element algorithm to do all the hard work. The important things to note, as far as our add-in function is concerned, are:

Next, we'll use the XLL+ Function Wizard to apply these layout rules.

Create the function

Using the Function Wizard, add a new function, with properties as shown below:

Name: MAXCOORD
Return type: CXlOper
Category: Statistical
Description: Get the x or y coordinate of the maximum value in an array

Add a Matrix argument

Add the array argument, as follows:

Type: Double[][]
Name: Array
Description: 2-dimensional array of numbers

Set the Matrix layout

Open the Argument Editor for Array, and switch to the Matrix tab.

Set the following fields:

Container: ple::mtx_flat<T>
Layout: Store as [column, row]

Defend against empty arrays

The code in the add-in function may blow up if the array is empty, so defend against this by setting the "Reject empty matrix" flag:

Reject empty matrix: true

If the user enters an empty array, then an exception will be thrown by the validation code, and an error message such as "#ERROR: Expected at least one cell for Array" will be returned. If there is any code that assumes Array to be non-empty, e.g:

CopyC++
CallFunction(&Array[0]);

or

CopyC++
CallFunction(Array.begin());

it will not be called, because the function has already ended.

Click OK to close the Argument Editor.

Add a Boolean argument

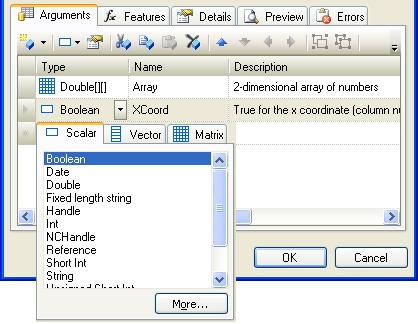

In the Function Wizard add a new argument, XCoord, with fields as follows:

Name: XCoord
Type: Boolean
Dimensions: Scalar
Description: True for the x coordinate (column number), false for y (row number)

Note that XCoord is a Boolean argument (i.e. True or False). It will be passed to our add-in function as type BOOL (int), with values TRUE (1) or FALSE (0).

Click on OK to return to Visual Studio and complete the code.

Next: Handling Excel coordinates >>
