Parameters

The extended types we have looked at so far are simple to use. Some other extended types may need extra information in order to work. For example, we might add a FixedLengthString type, which will reject a string that is not of a certain length. The developer needs to be able to specify what the required length actually is, and this can of course vary for different arguments.

The solution to this issue is to add a Parameter to the extended type's definition.

FixedLengthString extended type

Use the XLL+ Options/Extensions page to load the file FixedLengthString.xpe from the XLL+ extensions sub-directory (as described in Extended types).

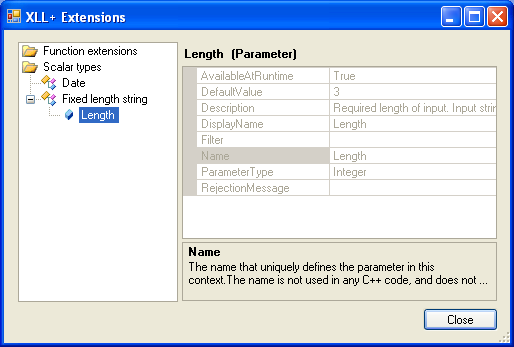

Use the View button to examine the type in the XLL+ Extensions window.

Observe that the type has a parameter, Length, which is defined as an integer. The parameter has the property AvailableAtRuntime set to true, so it's value will be passed to the converter class.

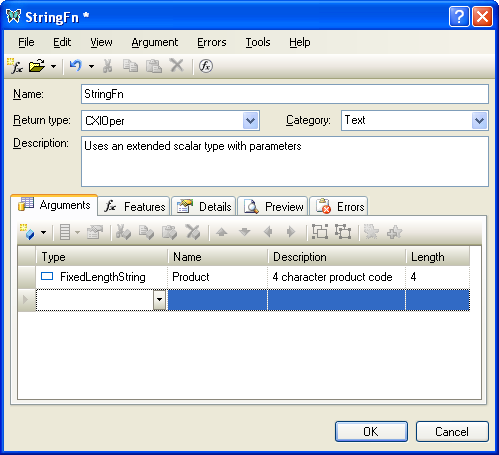

In Visual Studio, create a new add-in function and add an argument of type FixedLengthString. A new column appears in the XLL+ Function Wizard, to let you specify the Length parameter.

The code generated for a type with parameters is more complex than the usual code.

CopyC++
CXlOper* StringFn_Impl(CXlOper& xloResult, const CXlStringArg& Product_op)
{
    // Input buffers
    CString Product;
    // Validate and translate inputs
    XlReadScalarEx(Product_op, Product, FixedLengthStringConverter(),
        CScalarConvertParams<CString>(L"Product", 0, 0, -1).SetIntParam(0, 4));
    // End of generated code
//}}XLP_SRC
    ...
}

The Wizard has generated code that passes the value of the Length parameter to the validation function, by calling SetIntParam(0, 4), i.e. setting the value of the first integer parameter to 4.

Open up FixedLengthStringConverter.h in the XLL+ include\extensions sub-directory, and you can see how the parameter value is used:

CopyC++
class FixedLengthStringConverter : public CXlUserConverterBase<CString, CString>
{
public:
    virtual bool ConvertFromExcel(const CString& xlValue, CString& outerValue,
        const ParamsType& params) const
    {
        if (xlValue.GetLength() != params.GetIntParam(0))
            return false;
        outerValue = xlValue;
        return true;
    }
protected:
    virtual std::string GetTypeName(const ParamsType& params) const
    {
        char buf[128];
        _snprintf_s(buf, sizeof(buf), sizeof(buf) - 1, "%d-character string",
            params.GetIntParam(0));
        return buf;
    }
    ...
};

The parameter value is used in two places:

  1. It is compared to the length of the string argument received from Excel.
  2. It is used to compose the type name for error messages.

If the input fails the length test, an error message like the following is returned:

#ERROR: Expected 4-character string for Product

Examples

For more examples of extended types with parameters see the files in the extensions directory (and their matching header files in include\extensions).
