This call-back is the most important part of the real-time data implementation. It is called by Excel whenever it needs to know about a particular topic.

This call may occur at any of three points:

1. For a new topic, that has just been requested from an add-in function, via a call to CXllRtdFeedServerProxy::CallRtd().

2. From a cell in a previously saved workbook which has been reopened.

3. For a topic that has been updated by the client XLL using CXllRtdFeedServerProxy::UpdateTopic().

The implementation consists of three steps.

1. Look up the requested item in the cache. (This should be a thread-safe operation.)

2. If the requested item is not yet on the cache, then add the item, and request the data from the data feed. (This should also be thread-safe.)

3. Set the value of the parameter *lpvntState to the timestamp of the data.

This method is called when Excel informs us (via the RTD server) that the specified topic has been removed from the RTD server's list of active topics.

This will occur after the last cell range that uses the topic is removed, closed, or for any other reason ceases to be connected to the specified topic - for instance because an argument to a formula has changed, and therefore the topic has changed.

The call is not guaranteed to come immediately after the topic becomes unused. It may be delayed - Excel controls the timing.

The implementation consists of two steps.

1. Remove the requested item from the cache. This should be a thread-safe operation.

2. Inform the data feed that we are no longer interested in the item (Unadvise).

This method is called whenever updates arrive from the data feed. It may be called by the data feed listener thread or by the main thread. Like the other event handler callback functions, all the operations it calls must be thread-safe.

If the feed is currently paused, then the update messages are queued and no further action is taken until the feed is restarted.

If the feed is not currently paused, then 2 steps are required for each update message:

1. Update the data item in the cache. If it is not present in the cache, discard the message.

2. Call CXllRtdFeedServerProxy::UpdateTopic() to tell Excel that the topic is changed, and that all cells depending on it should be recalculated.

This utility method adds a data item to the cache and connects it to the data feed.

1. Add the item to the cache, without any data.

2. Fetch the data from the data feed (using a synchronous GET call).

3. Send an ADVISE message to the feed to register for future updates.

As with all the other core functions of the add-in, all of the operations in this method are thread-safe.

This method switches on the update queue, so that asynchronous updates no longer reach the cache or Excel. Until the feed is restarted, all updates will be stored in the update queue.

This method switches the update queue off, so that asynchronous update messages go directly to the cache and to Excel. It also processes all queued update messages that arrived while the feed was paused.

LoadDictionary() downloads the data dictionary from the feed, and stores it in a local copy. This copy will be used to validate property identifiers and to enrich the user interface.

DF_LIVE(Security, Property)

Real-time data worksheet function

This function is a simple and typical real-time data function. It is a real-time data function: it returns live data, which is automatically refreshed when the data is updated.

DF_LIVE makes use of the methods in the helper class CFeedHelper, which handle the basic tasks of converting data formats between Excel and the DemoFeed API.

CopyC++

CXlOper* DF_LIVE_Impl(CXlOper& xloResult, const CXlStringArg& Security,
    const CXlStringArg& Property)
{
    CFeedAddinApp* papp = XllGetTypedApp();

    // Parse input
    CStringW strSecurityCode = CFeedHelper::MakeSecurityCode(Security);
    int nPropertyId = CFeedHelper::ValidateProperty(Property);

    // Check the cache
    if (!papp->m_dataCache.GetValue((LPCWSTR)strSecurityCode,
        nPropertyId, &xloResult, 0))
    {
        // For new items, add to the cache, get the data from the feed,
        // and also advise future updates.
        papp->AddFeedItemToCache((LPCWSTR)strSecurityCode,
            nPropertyId, xloResult);
    }

    // Call RTD, to inform Excel that this is live data
    CXlOper xloRtdResult;
    std::wstring strTopic = CDataCache::MakeTopic(
        (LPCWSTR)strSecurityCode, nPropertyId);
    papp->m_rtdServer.CallRtd(xloRtdResult, strTopic.c_str());

    return xloResult.Ret();
}

The function performs four steps.

1. Validate and convert the inputs, throwing an exception if the property is invalid.

2. Check the cache for the requested data.

3. If the data is not in the cache, request it from the feed and add it to the cache. Also send an ADVISE message to the feed, so that our feed listener thread will receive update messages about this data item.

4. Inform Excel that the calling cell is dependent on external data, by calling CXllRtdFeedServerProxy.CallRtd(), with a topic that defines the data item.

The last step is very important. Even if the data is found in the cache, we must still inform Excel that the data may change in the future; if we don’t use CallRtd(), then Excel will not know this.

Note that all calls to shared components are thread-safe.

Note also that the returned data may be scalar (single-cell) or an array. CFeedHelper::ParsePropertyValue() handles the conversion, making use of the data dictionary to determine the data type and rank of the property.

DF_GET(Security, Property)

Worksheet function

This function is equivalent to DF_LIVE, except that it is not a real-time data function: it simply returns the requested item from the feed – cells will not be refreshed when the data is updated.

CopyC++

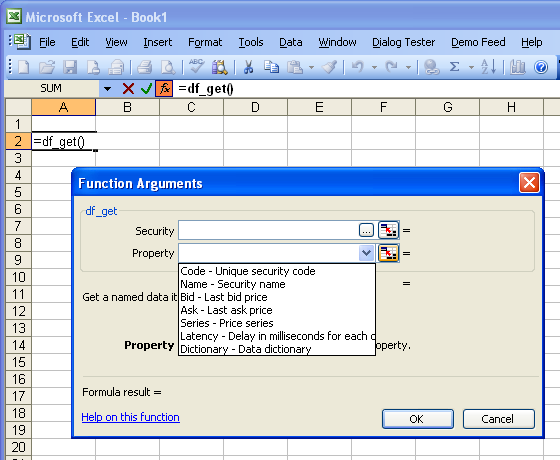

CXlOper* DF_GET_Impl(CXlOper& xloResult, const CXlStringArg& Security,
    const CXlStringArg& Property)
{
    CStringW strSecurityCode = CFeedHelper::MakeSecurityCode(Security);
    int nPropertyId = CFeedHelper::ValidateProperty(Property);

    std::wstring strValue;
    DemoFeed::timestamp_type tsValue;
    int rc = XllGetTypedApp()->m_connection.Get(strSecurityCode,
        nPropertyId, strValue, tsValue);
    if (rc == 0)
        xloResult = CFeedHelper::ParsePropertyValue(strValue,
            nPropertyId);
    else
        xloResult.Format(_T("#ERROR %d"), rc);

    return xloResult.Ret();
}

DF_GET makes use of the methods in the helper class CFeedHelper, which handle the basic tasks of converting data formats between Excel and the DemoFeed API.

DF_GET performs three steps:

1. Validate and convert inputs.

2. Request data from the data feed.

3. Convert returned data to Excel format.

Note that the returned data may be scalar (single-cell) or an array. CFeedHelper::ParsePropertyValue() handles the conversion, making use of the data dictionary to determine the data type of the property.

DF_FIND(Search)

Worksheet function

This simple function sends a partial security code to the data feed and returns the list of security codes that match. It is not a real-time data function, and does not receive automatic updates.

DF_TOGGLE_FEED()

Macro

This macro function pauses or restarts the data feed. It also updates the text of the Excel menu item to match the current state of the feed.

CopyC++

CXlOper* DF_TOGGLE_FEED_Impl(CXlOper& xloResult)
{
    CFeedAddinApp* papp = XllGetTypedApp();

    if (papp->FeedIsPaused())
        papp->RestartFeed();
    else
        papp->PauseFeed();

    papp->m_menu.ReplaceItem(0, papp->FeedIsPaused()
        ? _T("Restart &Feed") : _T("Pause &Feed"));

    return xloResult.Ret();
}

Note that the three methods used – FeedIsPaused(), PauseFeed() and RestartFeed() – are all thread-safe operations, to avoid conflicts with the feed listener thread.

DF_SET(Security, Property, Value)

Macro

This macro function publishes a single data value to the feed. It can be called from VBA code, e.g.:

CopyVBA

Application.Run "DF_SET", "MGC", 2, 99.9

It is useful for writing VBA macros that test functionality, performance and latency.

DF_SET_RANGE(Range)

Macro

This macro function publishes a range of data values to the feed. It can be called from VBA code, e.g.:

CopyVBA

Application.Run "DF_SET_RANGE", Range("F3:K24")

If Range is omitted, then the current selection is used as the input. A command on the Excel Demo Feed menu, Set data from Selection, invokes this macro.

The macro accepts three forms of data range.

Table

A table should contain at least 2 x 2 cells, with property identifiers in the top row (except for the top-left cell), security codes in the left-most column (except for the top-left cell) and values in the rest of the table. The top-left cell must be empty.

	NAME	BID	ASK
MGC	MegaCorp	100	100.5
CD	Cheesedale	50	51

List

A list should contain 3 columns and any number of rows. The three columns, from left to right, should contain (i) Security Code, (ii) Property Identifier, and (iii) Value.

MGC	BID	100
MGC	ASK	100.5
CD	BID	50
CD	ASK	51

Vector

A vector should contain one column and at least 3 rows. The top two cells contain the security code and the property name or id. The third and subsequent cells contain the vector data that is being published.

MGC

Series

100

101

102

...

DF_SET_THROTTLE_INTERVAL(Period)

Macro

The data feed client uses a pull-push mechanism. It polls the server periodically from a background (listener) thread. Use this macro to set the period, in milliseconds.

DF_FIND_POPUP()

Macro

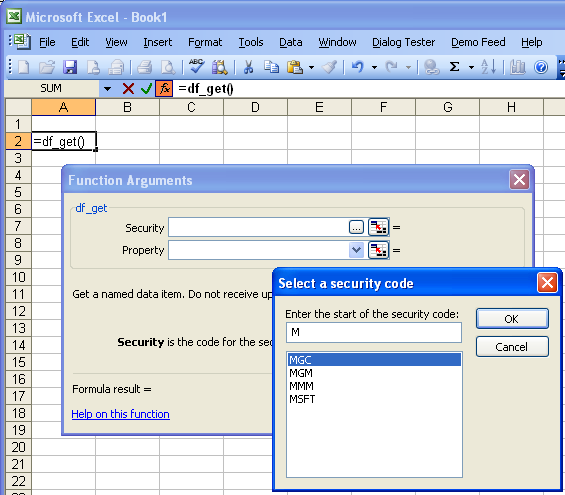

This macro function pops up the security code search dialog that is discussed below under User Interface extensions. If the user selects a code, it is placed in the active cell.

The application class, CFeedAddinApp, contains an instance of CXllRtdFeedServerProxy, which is used to send requests and update messages to the RTD server.

CopyC++

class CFeedAddinApp : public CXllApp
{
    ...
    // Connection to RTD
    CXllRtdFeedServerProxy m_rtdServer;
    ...
}

Whenever a topic of interest is updated, the RTD server is informed during CFeedAddinApp::OnFeedGetUpdates():

CopyC++

m_rtdServer.UpdateTopic(pszTopic);

During every add-in function that supplies live data, a call is made to CallRtd():

CopyC++

// Call RTD, to inform Excel that this is live data
CXlOper xloRtdResult;
std::wstring strTopic = CDataCache::MakeTopic(strSecurityCode, Property);
papp->m_rtdServer.CallRtd(xloRtdResult, strTopic.c_str());

This class is derived from the abstract base class IXllRtdFeedCallback. It handles two important call-backs from the RTD server. In both cases, they are routed to the application class:

CopyC++

bool MyXllRtdFeedCallback::OnGetDataState(LPCWSTR lpszClient,
    LPCWSTR lpszTopic, LPVARIANT lpvntState)
{
    return XllGetTypedApp()->OnRtdGetDataState(lpszClient, lpszTopic,
        lpvntState);
}

void MyXllRtdFeedCallback::OnTopicRemoved(LPCWSTR lpszClient,
    LPCWSTR lpszTopic, long lTopicID)
{
    XllGetTypedApp()->OnRtdTopicRemoved(lpszClient, lpszTopic,
        lTopicID);
}

The application class’s implementations of these event handlers are discussed elsewhere.

This class is derived from DemoFeed::FeedConnection, and implements the virtual function, OnGetUpdates(), which is called from a listener thread whenever updates arrive.

CopyC++

class MyFeedConnection : public DemoFeed::FeedConnection
{
public:
    virtual void OnGetUpdates(const std::vector<DemoFeed::FeedMessage>&
        updates)
    {
        XllGetTypedApp()->OnFeedGetUpdates(updates);
    }
};

The updates are routed to the application class method OnGetFeedUpdates(). This is discussed elsewhere.

An instance of MyFeedConnection is contained in the application class:

CopyC++

class CFeedAddinApp : public CXllApp
{
    ...
    // Connection to data feed
    MyFeedConnection m_connection;
    ...
}

The instance is used to send requests to the data feed, including the following:

• Get() and Advise() are called when an add-in function requests a particular data topic.

• Unadvise() is called Excel informs us (through MyXllRtdFeedCallback::OnTopicRemoved()) that a topic is no longer of interest.

This class is a thread-safe lookup table. The key to each item in the table is a pair: security code + property identifier.

For each item the following fields are held:

Holding the parsed value of the data in m_xloValue is a very good idea for improving performance. A single piece of data may be required many times, since Excel’s recalculation engine can frequently recalculate cells that have not changed, and this way it need only be parsed once.

The following thread-safe methods are available for accessing the cache:

• AddItem
• RemoveItem
• UpdateItem
• GetItem
• GetValue

The last method, GetValue(), is optimized for minimal data copying, and is intended for use from add-in functions.

This simple class implements a thread-safe message queue.

If the data feed is paused, then message queue is activated, and the add-in pushes any new update messages into the queue.

If the feed is restarted, then all the queued messages are processed, and any newly arrived update messages are processed normally.

This class contains a few static functions that help with data conversion and validation.

CopyC++

static int CFeedHelper::ValidateProperty(const wchar_t* pszProperty,
    const TCHAR* pszArgumentName = _T("Property"));

ValidateProperty() is a useful method, and is worth examining. It does the following for a Property identifier input to an add-in function:

1. If the input is an integer, check whether it is a legal numeric property id. If it is not, then throw an exception.
2. If the input is a string, look it up in the data dictionary. If it is valid, return the numeric property id. If it is not, then throw an exception.
3. Return the numeric property id.

Conveniently, the method only returns a valid property id. If an exception is thrown, then the add-in function will immediately cease, and will return a useful error message to Excel. This is a useful pattern, and allows you to write simple short code in the add-in function, with no extra error handling overhead; e.g.:

CopyC++

int nPropertyId = CFeedHelper::ValidateProperty(Property);
